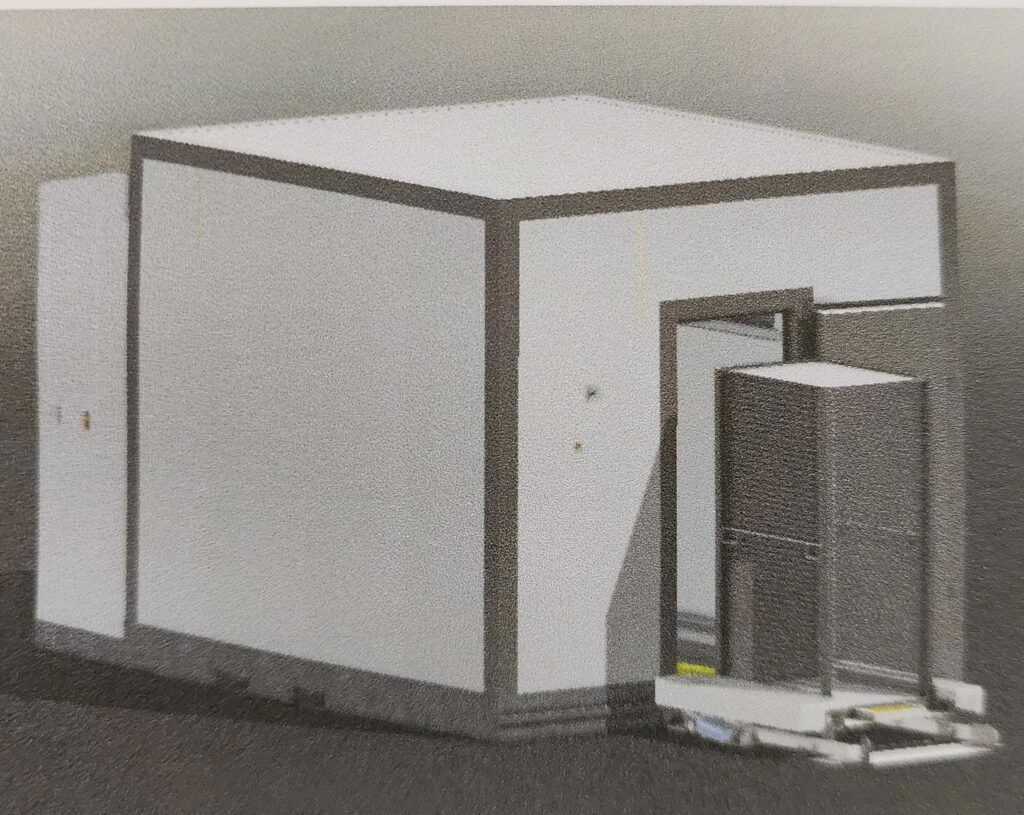

Rexmoi 180m² High Volume Dehydrator
The Rexmoi 180/100 is capable of removing up to 100 litres per hour. It takes six trolleys with a total of 180m² of drying surface when using wire mesh trays.
Programming multiple drying recipes is easy using the large touchscreen. Each recipe can have multiple stages where different temperatures and humidity levels are set. There are pre-heating, drying, cooling and kill stage modes.
The dryer has a forklift-friendly galvanised steel base, with urethane-insulated panels. All internal surfaces are stainless steel, which meets food-grade requirements.
The stainless-steel trays are mounted on heavy-duty stainless-steel trolleys to enable the product to be easily moved in and out of the drying chamber.
Specifications

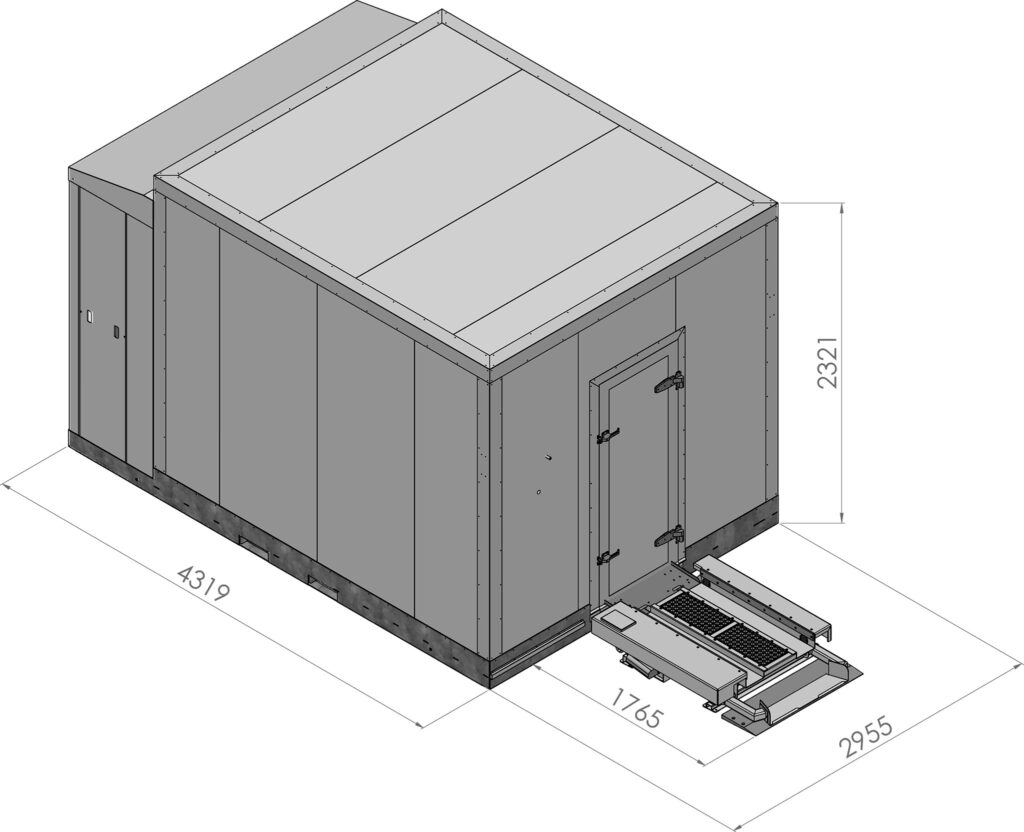

Size: 4.32m long x 2.96m wide x 2.32m high
Weight: 4500kg
Capacity: Up to 1500kg of product, 180m²
Power supply: 230v, 60 amp, 3-phase power
Optional Trolleys: 6
Each trolley has either:
- 50x wire mesh trays or flat trays
- 12x draw trays
- 3x large bins
Temperature range: 10° to 70°C
New Zealand Made
Customised drying solutions
Energy Efficient
Closed loop heat pump technology
Low Temp Dehydration
Retain the best colour & nutrition
3 Innovative Trolley Options To Suit Your Product
Our patented design trolleys were created with versatility and efficiency in mind.
The tray/bin quantities shown below are per trolley. Each 90m2 Rexmoi® dehydrator system comes with 3 trolleys.

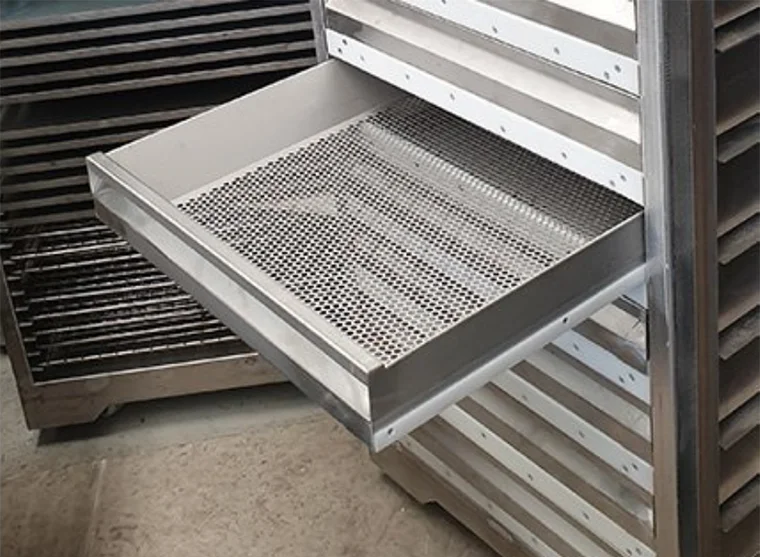

Drawer Trays
Qty: 12
Size: 600mm x 980mm x 90mm
Use: nuts
These drawers have been especially designed to force evenly distributed air flow down through the product. There are 12 drawers per trolley.

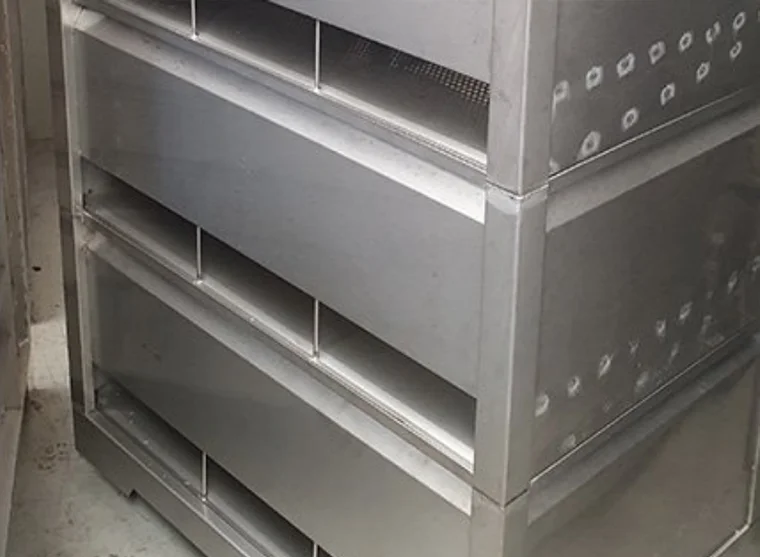

Bin Trolleys
Qty: 4
Size: 600mm x 980mm x 300mm
Use: herbs, leaves, bulky products
These bins allow for bulky products such as leaves, designed to evenly distribute air flow through the product. There are 4 bins per trolley.

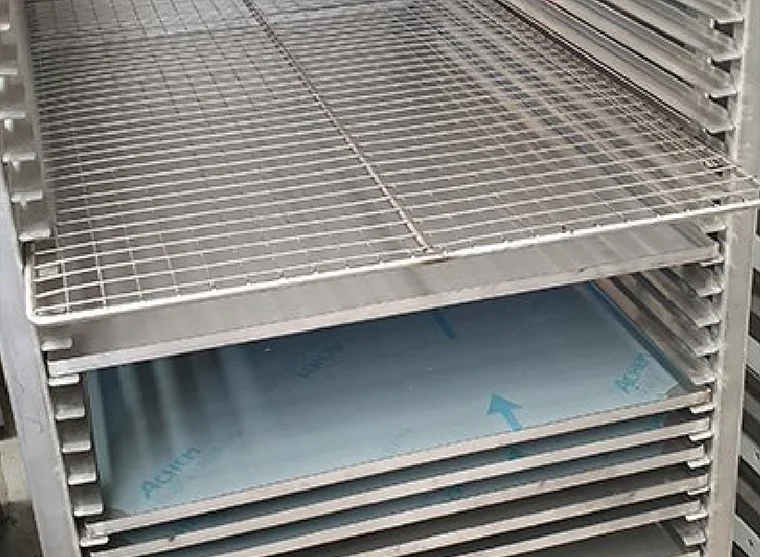

Wire or Flat Trays
Qty: 50
Size: 600mm x 980mm x 15mm
Use: fruit, veggies, meat, pet food
These trays allow the air flow to go over the product, rather than through it. There are 50 trays per trolley, providing 90m2 of drying area over the three trolleys.
